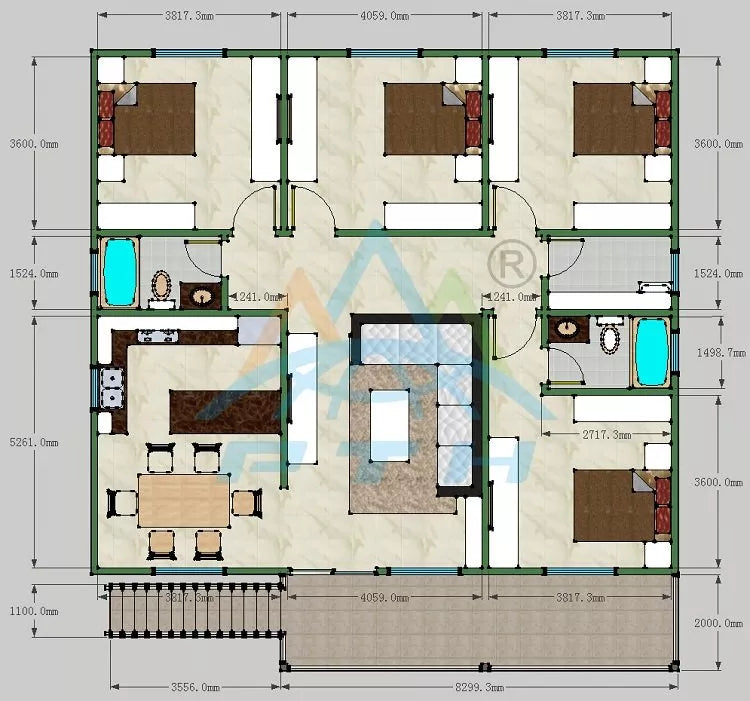

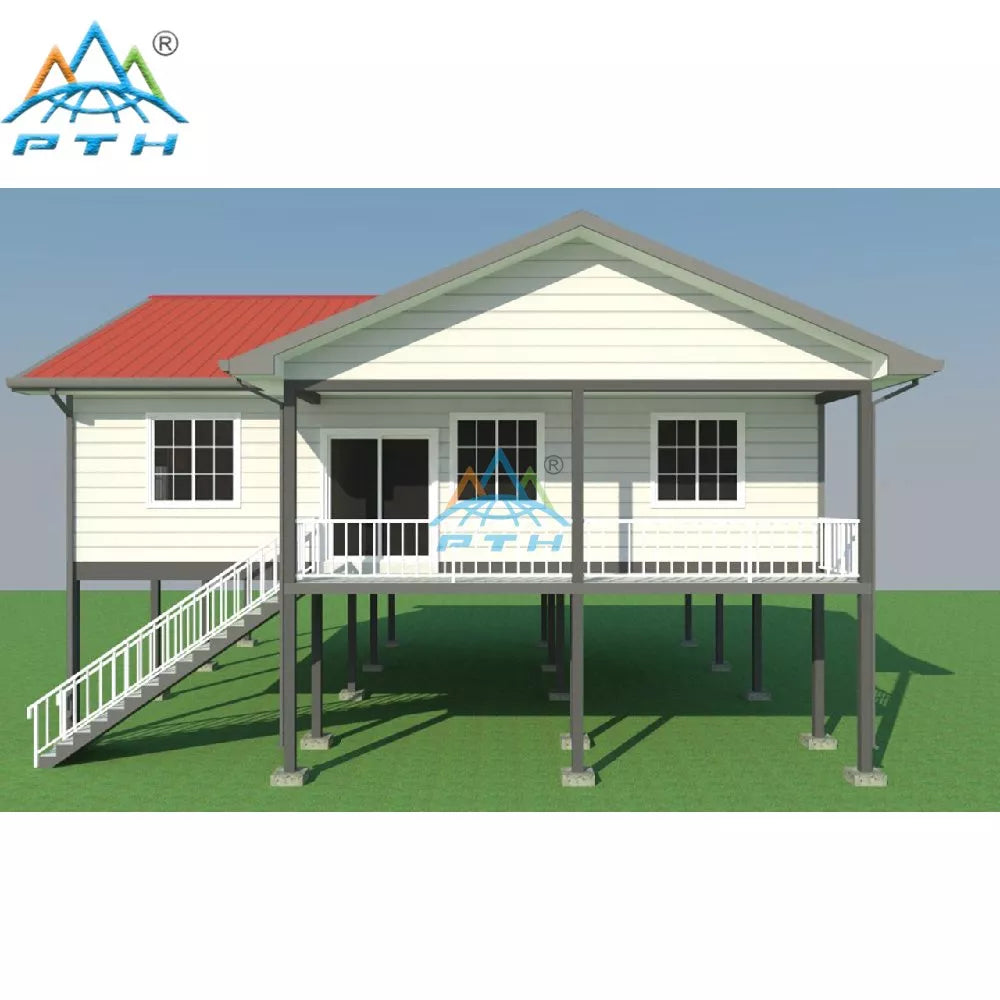

Luxury Prefabricated Light Steel Structure Villa With 4 Bedroom

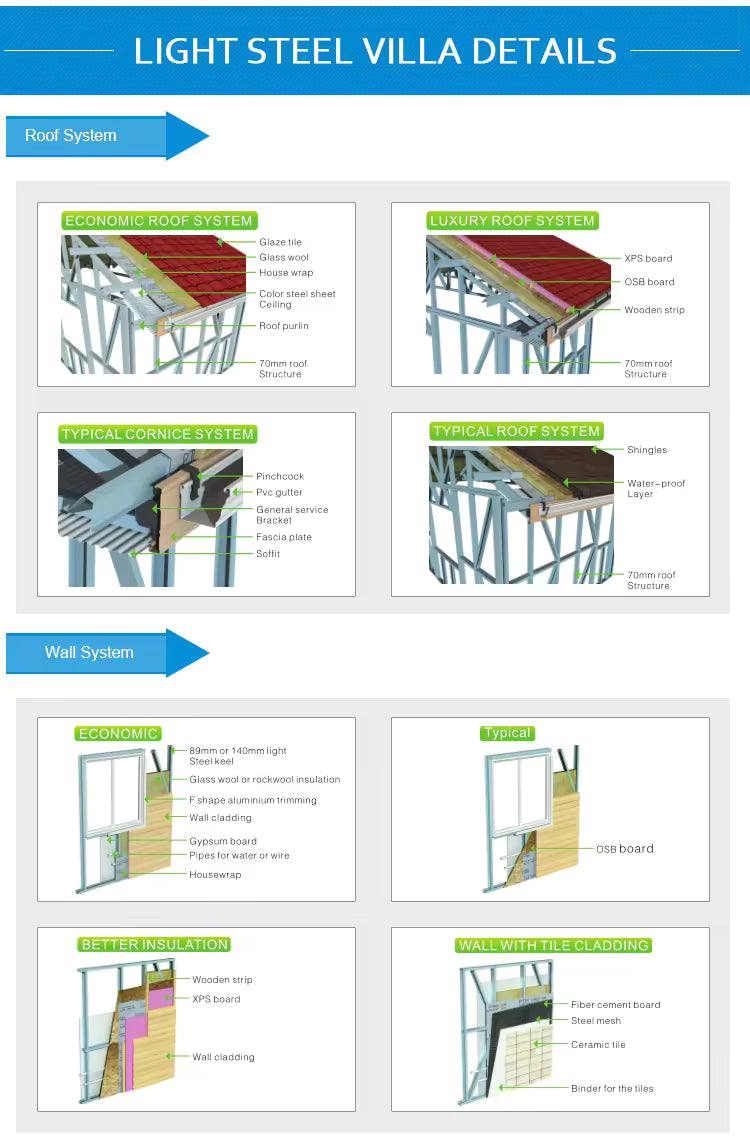

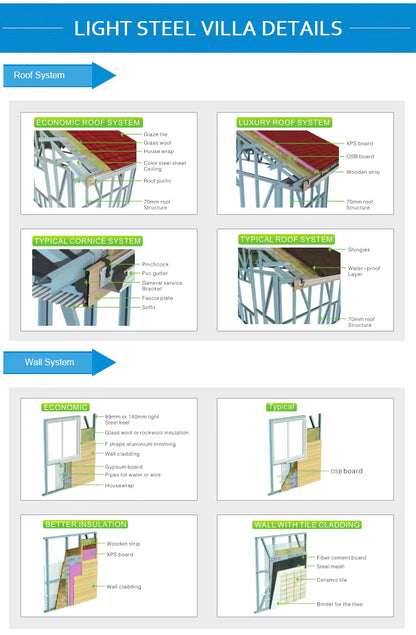

Materials of the wall system

PTH 16mm metal external wall cladding

Its surface is made of 0.42mm colored steel pressed

with embossed pattern;bottom is pasted with dampproof

aluminium foil; integrated with PU between the surface

and bottom. size: 16mm

PTH 12mm metal external wall cladding

Its surface is made of 0.42mm colored steel pressed

with embossed pattern;bottom is pasted with dampproof

aluminium foil; integrated with PU between the surface

and bottom. size: 12mm

Matal Carved board

Its surface is made of 0.42mm colored steel pressed

with embossed pattern;bottom is pasted with dampproof

aluminium foil; integrated with PU between the surface and bottom.

size: 16mm. effective width 375mm and 385mm

PVC metal external wall cladding(Holland style)

Size:

width:20.32-25.4cm

thickness: 0.8mm-1.0mm

Normal length: 3.81m

weigth:2.2(±0.1kg)/m²

Cement fiber external wall cladding(solid)

Size:

effective width: 460mm

effective thickness: 16mm18mm

Rippled plate

Size:

effective width:825mm

Metal external wall cladding pendant

Aluminium alloy belt course

 Insulation material

Glass insulation cotton

    Used in the wall system and roof system as

    insulation material.

XPS

    Used in the wall system and roof system as

    insulation material.

Building paper

    Isolate the mositure; mainly used in the wall

    system and the connection of wall keel and cement

    floor.

House wrap

   It is used to let the inside mositure out and

   protect the inner space from the humidity

   outside.Used in the wall system

 Downspout

•PVC gutter         •Steel gutter

 Boards

•Gypsum board

Size: 2.4m*3m; 9.5mm/12mm15mm

Used in the inner wall, floor.

•Cement fiber board

 Size: 2.4m*3m; thickness: 9.5mm/12mm/15mm

•Wood floor
